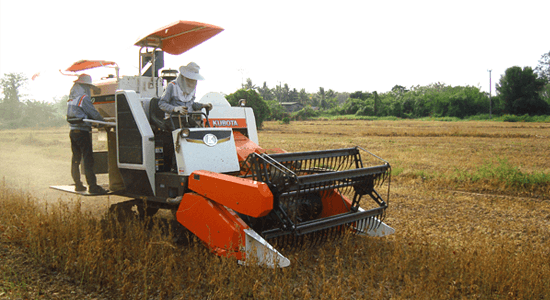

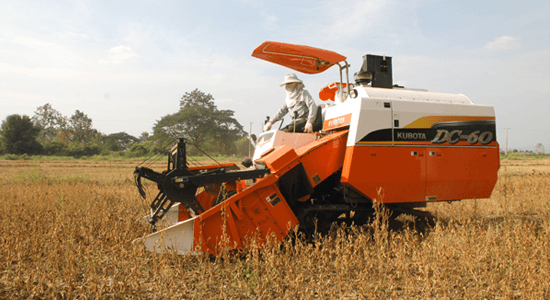

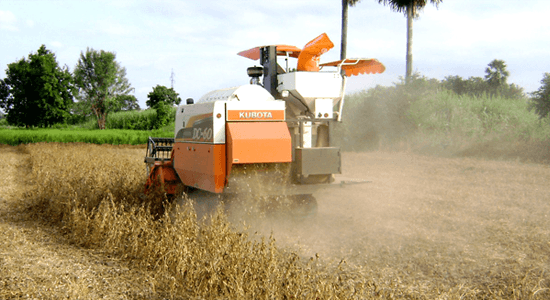

KUBOTA DC-60 Combine Harvester

small car
Length x Width x Height	4,800 x 2,175 x 2,800 mm.
Height under the car	N / A
Body Weight	2450 kg.
the engine
engine code	V2403-M-DI-TE2-CKMS1.
engine	The four-cylinder diesel, direct injection applications, cooled water.
Displacement	N / A
Rated output	60 hp / 2700 rev / min.
Tank capacity	60 liters
the drive
Crawler length x width touch the ground	400 x 1,545 mm.
Average ground pressure	0.20 kg force / cm
Cruise control	HST transmission hydraulics.
Gear oils	level 2
Running speed	1.3 /1.8 m / s
Header Information
The pull	Set reel
The width of the head	2000 mm.
Blade cutting length	1905 mm.
Reel diameter x width	900 x 1,828 mm.
the massage
Massage System	Axial flow system (dental treatment).
Threshing Diameter x Length	620 x 1,615 mm.
Tank bags of rice and rice.
Grain tank capacity	200-250 kg.
The rice	The conveyor screw
Performance	1-3 paddy fields 2.0-2.5 acres / hour, three acres of paddy up to 2.5-3.0 acres / hour.
