KUBOTA DC-68G Combine Harvester

small car
Length x Width x Height	4,800 x 2,175 x 2,800 mm.
Height under the car	N / A
Body Weight	2800 kg.
the engine
engine code	V2403-M-DI-TE2-CKMS4.
engine	The four-cylinder diesel, direct injection applications, cooled water.
Displacement	N / A
Rated output	68 hp / 2700 rev / min.
Tank capacity	60 liters
the drive
Crawler length x width touch the ground	450 x 1,680 mm.
Average ground pressure	0.19 kg force / cm
Cruise control	HST transmission hydraulics.
Gear oils	level 3
Running speed	0.97 /1.37 /1.85 m / s

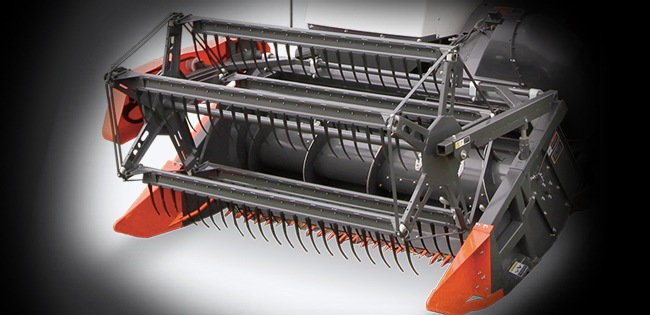

Header Information
The pull	Set reel
The width of the head	2000 mm.
Blade cutting length	1905 mm.
Reel diameter x width	900 x 1,828 mm.

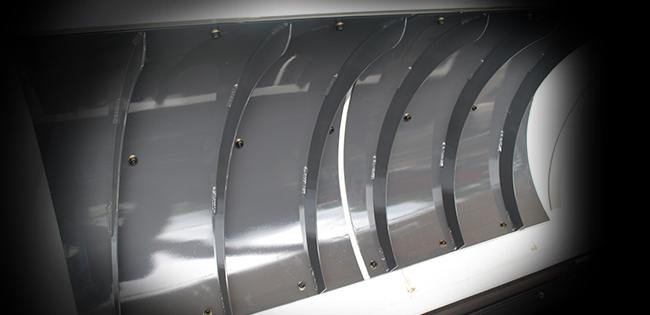

the massage
Massage System	Axial flow system (dental treatment).
Threshing Diameter x Length	620 x 1,615 mm.
Bulk grain
Grain tank capacity	600 kg.
The rice	The conveyor screw
Performance	1-3 acres of paddy from 1.75 to 2.25 acres / hour, three hectares of paddy fields up to 2.25 to 2.88 / hr.
